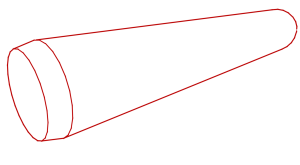

ISO 2338 Form B
Zylinderstifte
Material: 9SMn 28 oder vergleichbare Zugfestigkeit: ca. 500 -700N/mm²
RoHS: konform
Oberfläche: Toleranzfeld h8
ISO 2338 Form B ZylinderstifteISO 2338 Form B Zylinderstifte
ISO 2338 Form B Zylinderstifte
ISO 2338 Form B Zylinderstifte

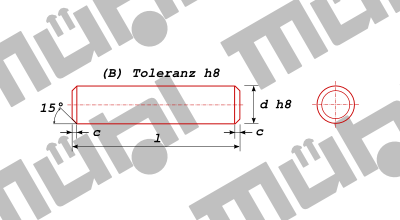

technische Details, Abmessungen in [mm]
d 2 2,5 3 4 5 6 8 10
d max. 2,000 2,500 3,000 4,000 5,000 6,000 8,000 10,000
d min. 1,986 2,486 2,986 3,982 4,982 5,982 7,978 9,978
c ~ 0,35 0,4 0,5 0,63 0,8 1,2 1,6 2

Stück je Verpackungseinheit
l | d 2 2,5 3 4 5 6 8 10
2
3
4 100 100
5 100 100
6 100 100 100 100
8 100 100 100 100 50
10 100 100 100 100 100 50 50 25
12 100 100 100 100 100 50 50
14 100 100 100 100 100 50 50
16 100 100 100 100 100 50 50 25
18 100 * 100 100 100 50 50 25
20 100 100 100 100 100 50 50 25
22 100 100
24 100 100 100 50 25
26 100 50
28 100 100 100 50 50 25
30 100 100 100 50 50 25
32 100 50 50 25
36 100 50 50 25
40 100 50 50 25
45 100 50 25
50 100 50 25
55 50 25
60 50 25
70 50 25
80 25
