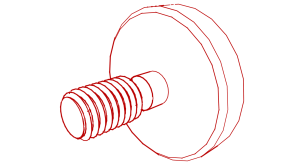

DIN 653 |
Flache Rändelschraube |
Material: Stahl Güte 5.8 |
RoHS: konform |
Oberfläche: blank  |
 |  |
| |
 |

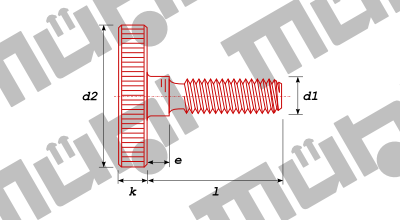

technische Details, Abmessungen in [mm]
| d1 | M 3 | M 4 | M 5 | M 6 | M 8 | M 10 |
| d2 | 12 | 16 | 20 | 24 | 30 | 36 |
| k | 2,5 | 3,5 | 4 | 5 | 6 | 8 |
| e | 2 | 3 | 3 | 4 | 5 | 6 |
Stück je Verpackungseinheit
| l | d1 | M 3 | M 4 | M 5 | M 6 | M 8 | M 10 |
| 6 | 50 | 50 | ||||
| 8 | 50 | 50 | ||||
| 10 | 50 | 50 | 50 | |||
| 12 | 50 | 50 | 50 | 25 | 25 | |
| 16 | 50 | 50 | 50 | 25 | 25 | |
| 20 | 50 | 50 | 50 | 25 | 25 | |
| 25 | 50 | 50 | 25 | 25 | 25 | |
| 30 | 50 | 25 | 25 | 25 | 25 | |
| 35 | 25 | 25 | 25 | |||
| 40 | 25 | 25 | 10 | 25 | ||
| 45 | 25 | 10 | 25 | |||
| 50 | 10 | 25 | ||||
| 60 | 10 | |||||
| 70 | 10 | |||||
| l | d1 | M 3 | M 4 | M 5 | M 6 | M 8 | M 10 |
