Werksnorm 2276 - D

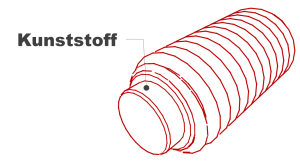

Druckschraube mit Kunststoff-Bolzen
Material: Schraube: Stahl, Bolzen: Delrin
RoHS: konform
Oberfläche: Schraube: brüniert
Werksnorm 2276 - D Druckschraube mit Kunststoff-BolzenWerksnorm 2276 - D Druckschraube mit Kunststoff-Bolzen
Werksnorm 2276 - D Druckschraube mit Kunststoff-Bolzen
Werksnorm 2276 - D Druckschraube mit Kunststoff-Bolzen

technische Details, Abmessungen in [mm]
d2 l2 SW
2 1 2
2 1 2
2 1 2
2 1 2
2 1 2
3 1 2,5
3 1 2,5
3 1 2,5
3 1 2,5
3 1 2,5
3,5 1,3 3
3,5 1,3 3
3,5 1,3 3
3,5 1,3 3
3,5 1,3 3
5 1,6 4
5 1,6 4
5 1,6 4
5 1,6 4
5 1,6 4
6,5 1,9 5
6,5 1,9 5
6,5 1,9 5
6,5 1,9 5
8 2,1 6
8 2,1 6
8 2,1 6
8 2,1 6
8 2,1 6
d1 x l1
M 4 x 7 10
M 4 x 9 10
M 4 x 11 10
M 4 x 13 10
M 4 x 17 10
M 5 x 9 10
M 5 x 11 10
M 5 x 13 10
M 5 x 17 10
M 5 x 21 10
M 6 x 11,3 10
M 6 x 13,3 10
M 6 x 17,3 10
M 6 x 21,3 10
M 6 x 26,3 10
M 8 x 13,6 10
M 8 x 17,6 10
M 8 x 21,6 10
M 8 x 26,6 10
M 8 x 33,6 10
M 10 x 17,9 10
M 10 x 21,9 10
M 10 x 33,9 10
M 10 x 41,9 10
M 12 x 22,1 10
M 12 x 27,1 10
M 12 x 34,1 10
M 12 x 42,1 10
M 12 x 52,1 10
