Werksnorm 441 - E
Verstellbarer Klemmhebel
Material: Griff: Zink-Druckguss, Gewindebuchse: Stahl
RoHS: konform
Oberfläche: Griff: schwarz- oder orange- Kunststoffbeschichtet, Gewindebuchse: brüniert
Werksnorm 441 - E Verstellbarer KlemmhebelWerksnorm 441 - E Verstellbarer Klemmhebel
Werksnorm 441 - E Verstellbarer Klemmhebel
Werksnorm 441 - E Verstellbarer Klemmhebel

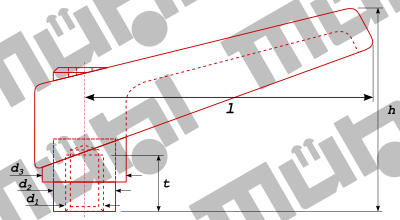

technische Details, Abmessungen in [mm]
d2 l h t
10 45 35 8
10 45 35 8
13,5 62 45 10
13,5 62 45 10
16 74 52 14
16 74 52 14
19 89 63 17
19 89 63 17
23 108 76 22
23 108 76 22
10 45 35 8
10 45 35 8
13,5 62 45 10
13,5 62 45 10
16 74 52 14
16 74 52 14
19 89 63 17
19 89 63 17
23 108 76 22
23 108 76 22
d3 - d1
14 - M 5 org. 1
14 - M 6 org. 1
18 - M 6 org. 1
18 - M 8 org. 1
22 - M 8 org. 1
22 - M 10 org. 1
25 - M 10 org. 1
25 - M 12 org. 1
30 - M 12 org. 1
30 - M 16 org. 1
14 - M 5 schw. 1
14 - M 6 schw. 1
18 - M 6 schw. 1
18 - M 8 schw. 1
22 - M 8 schw. 1
22 - M 10 schw. 1
25 - M 10 schw. 1
25 - M 12 schw. 1
30 - M 12 schw. 1
30 - M 16 schw. 1
