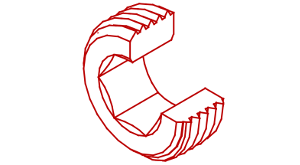

Werksnorm 906ZLFD
flache Verschlussschrauben mit durchgehendem IS und zylindrischem Feingewinde
Material: Stahl 34-44HRC
RoHS: konform
Oberfläche: blank
Werksnorm 906ZLFD flache Verschlussschrauben mit durchgehendem IS und zylindrischem FeingewindeWerksnorm 906ZLFD flache Verschlussschrauben mit durchgehendem IS und zylindrischem Feingewinde
Werksnorm 906ZLFD flache Verschlussschrauben mit durchgehendem IS und zylindrischem Feingewinde
Werksnorm 906ZLFD flache Verschlussschrauben mit durchgehendem IS und zylindrischem Feingewinde

technische Details, Abmessungen in [mm]
l SW
6 6
6 8
8 8
8 10
8 10
10 14
10 14
10 17
10 17
10 17
10 17
10 17
10 17
10 17
15 22
15 22
15 22
15 22
20 22
20 22
20 22
d x p
M 12 x 1,5 25
M 14 x 1,5 25
M 16 x 1,5 25
M 18 x 1,5 25
M 20 x 1,5 10
M 22 x 1,5 10
M 24 x 1,5 10
M 26 x 1,5 10
M 27 x 1,5 10
M 28 x 1,5 10
M 30 x 1,5 5
M 32 x 1,5 5
M 33 x 1,5 5
M 34 x 1,5 5
M 36 x 1,5 5
M 38 x 1,5 5
M 40 x 1,5 1
M 45 x 1,5 1
M 50 x 1,5 1
M 56 x 1,5 1
M 68 x 1,5 1
