Werksnorm G-A 1804
Selbstsichernde Nutmuttern mit Polyamidring und Feingewinde
Material: Automatenstahl
RoHS: konform
Oberfläche: verzinkt (Chrom 6 frei)
Werksnorm G-A 1804 Selbstsichernde Nutmuttern mit Polyamidring und FeingewindeWerksnorm G-A 1804 Selbstsichernde Nutmuttern mit Polyamidring und Feingewinde
Werksnorm G-A 1804 Selbstsichernde Nutmuttern mit Polyamidring und Feingewinde
Werksnorm G-A 1804 Selbstsichernde Nutmuttern mit Polyamidring und Feingewinde

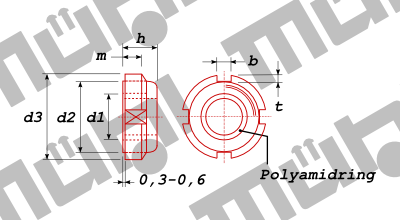

technische Details, Abmessungen in [mm]
d2 d3 h m b t
15 18 7,6 4,4 3 1,5
18 21 9,7 5,7 3 1,5
21 24 10,7 6 4 1,5
24 28 10,7 6 4 2
24 28 10,7 7,3 4 2
27 32 9,6 6 4 2,5
33 38 12,7 7 5 2,5
33 38 10,7 6,2 5 2,5
38 44 11,2 6,9 5 3
44 50 11,2 6,6 5 3
47 53 12,2 6 5 3
55 62 15,2 10,6 6 3,5
57 64 13,7 9,1 6 3,5
68 75 13,7 9,1 6 3,5
d1
M 10 x 1 10
M 12 x 1,5 10
M 14 x 1,5 10
M 16 x 1,5 10
M 18 x 1,5 10
M 20 x 1,5 10
M 22 x 1,5 10
M 24 x 1,5 10
M 28 x 1,5 1
M 32 x 1,5 1
M 38 x 1,5 1
M 42 x 1,5 1
M 48 x 1,5 1
M 52 x 1,5 1
